GlowShift Classic Series Cluster Dashboard Panel Gauge Package for 1967-1972 Chevrolet C10

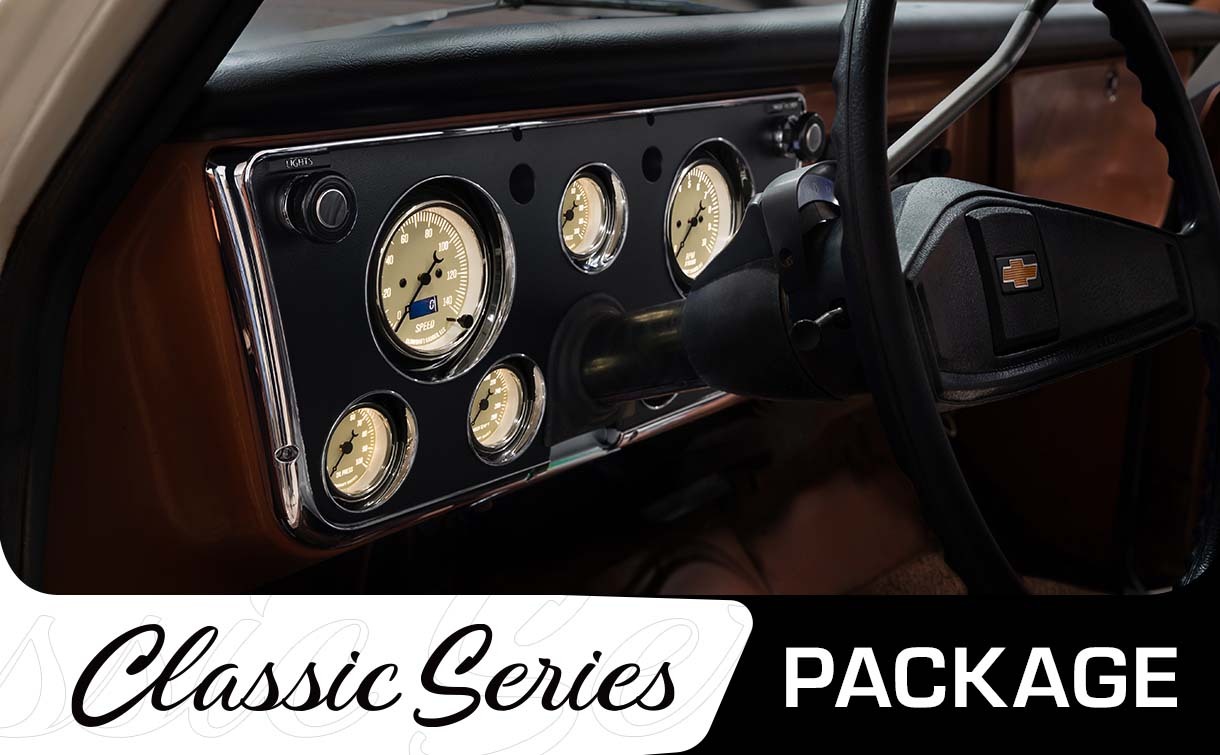

GlowShift Classic Series 7 Gauge Cluster Dashboard Panel Packages upgrade the factory dash of 1967-1972 Chevrolet C10 box body/square body full size CK pickups. These custom panel and gauge packages are also compatible with C20, K10, K20 and additional Chevy/GMC trucks and SUVs in the year range. Included is a factory fitted 2nd Generation C10 Dash Panel that seamlessly replaces the stock dashboard cluster. Included are Classic Series 3-3/8" (85mm) Speedometer and RPM Tachometers with (5) 2-1/16” (52mm) vintage gauges of your choice. Swap out the factory panel and stock C10 gauges of any 2nd Gen Chevy C10 for a custom dashboard build.

Classic Gauge Series

The Classic Series delivers a vintage style gauge with premium modern parts. Start by choosing between (3) unique analog faceplate designs: Black, White or Antique White, each offering a clean, simple, and elegant look. These classic gauges for cars and trucks have black or white analog tick marks, a black or white classic needle, a flat clear lens and chrome trim ring. Every electronic gauge features LEDs that are uniquely tuned to its specific style: the Antique White option offers a softer, warmer glow, while the other two versions showcase brighter, more traditional white LEDs. Nighttime Dimming Mode dims the brightness 30% to reduce glare for optimal viewing after sundown.

Features

Timeless Design

Backlighting

---

Included 3-3/8" Gauges

Speedometer Speedometer reads your Chevrolet C10’s driving speed from 0 to 140 MPH with pinpoint accuracy. Each speed gauge is equipped with an Odometer and (2) Resettable Trip Meters. Plug a GPS Sensor Antenna into the back of this In Dash Speedometer without needing a converter.

Tachometer RPM Tachometers accurately read from 0 to 10,000 RPM. These RPM tach gauges are optimal for any driver building a custom dashboard or replacing a stock tachometer. Time your shift perfectly and guard against unnecessary transmission wear to improve engine performance.

---

Recommended 2-1/16" Gauges

	Oil Pressure Gauge Oil Pressure Gauge reads your engine oil pressure from 0 to 100 PSI with unrivaled accuracy to let you know immediately if levels are where they should be. Monitor your vehicle’s oil pressure in real time ensuring the bearings, crankshaft and other critical engine parts stay properly lubricated.		Water Temp Gauge Water Temperature Gauge reads your vehicle’s coolant temperature from 100° to 300° Fahrenheit to catch any unusual dips or spikes. This coolant temp gauge helps you make sure that your Chevrolet C10’s engine doesn’t overheat with responsive readings that deliver instant feedback.
	Fuel Level Gauge Fuel Level Gauge accurately reads the amount of fuel in your Chevy C/K truck’s tank in standard increments of Empty, 1/4, 1/2, 3/4, and Full. The back of this automotive fuel tank gauge has a Resistance Adjuster so you can select from 9 different OHM Resistance Levels for your specific application.		Volt Gauge Volt Gauge monitors your 2nd Gen C10 truck’s electrical system from 8 to 18 volts, measuring the levels of your vehicle’s power supply to make sure it is providing a proper charge. This auto volt gauge will alert you instantly if there are any issues with the battery, alternator and other electrical systems.		Fuel Pressure Gauge Fuel Pressure Gauge reads engine fuel pressure from 0 to 100 PSI with pinpoint precision to detect any spikes or fluctuations. Ensure your Chevy C10’s fuel pressure is running at optimal levels and is not too low which could result in a loss of horsepower or damage to the fuel pump and injectors.

---

1967-1972 Chevrolet C10 Replacement Panels

Matte Black & Chrome Design GlowShift Cluster Dashboard Panels for the 1967-1972 Chevy C10 are specifically made to replace the original cluster trim. The design features a painted matte cluster and chrome finish with embossed text for the headlights and wiper washer. Add (2) 3-3/8” (85mm) gauges and (5) 2-1/16” (52mm) gauges, making this replacement panel an optimal choice for any driver building a custom dash cluster or replacing stock gauges. 85mm Reducer Rings are included to install 3-3/8” (85mm) Speedometer and Tachometer Gauges which are in stock for the 3-3/4” slots.

Green LED Turn Signals (2) Green LED Turn Signals and Custom Fitted Mounting Hardware are also included with each dash panel gauge pod. The green turn signals are easily mounted in the designated turn signal cutouts and feature red and black power wires that connect to the truck's factory wiring harness. The included mounting hardware securely holds the pod with seven aftermarket gauges attached in place using screws.

Antique Gauges with Everything for Installation

This Chevrolet C10 dash gauge set comes with required sensors depending on the specific C10 gauges you select. The RPM Tach Gauge and Speedometer MPH Gauge each feature a 2’ Power Harness with a 2’ Signal Wire. Mounting Hardware and Mounting Brackets are also provided in addition to detailed step-by-step Instructions that walk you through the entire installation process. Included Gauge Visors will help block out sun glare as you’re viewing gauge readings.

Custom Gauge Set Wiring

Power and sensor harnesses included with this vintage gauge set seamlessly snap into the back of their respective gauges by utilizing Plug and Play Connectivity. The Power Wiring Kits feature Ground, Switched 12v, Constant 12v, and Headlight connections. With extended wire lengths you’ll have added flexibility as you install the dashboard panel C10 gauge pod and these automotive gauge sets.

2nd Gen Chevy C10 Classic Gauge Sets

Build a custom gauge and pod set for your 2nd Generation Chevrolet C10 combining C10 replacement panels and Classic Series vintage gauges. If your factory C10 dash panel has been worn or damaged over time, you can upgrade to this modern replacement. You can also swap out faulty stock C10 gauges and upgrade them to the Classic Series which brings modern gauge updates but keeps the look of antique gauges. This dash gauge set will enhance the interior of box body/square body C10, C20, K10, K20 and additional Chevy/GMC CK trucks and SUVs in the Second Gen 1967-1972 year range.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
